Industrial Double Shaft CD Memory Chips Card PCB Circuit Board Disintegrator
Industrial Double Shaft CD Memory Chips Card PCB Circuit Board Disintegrator
Industrial Double Shaft CD Memory Chips Card PCB Circuit Board Disintegrator
Industrial Double Shaft CD Memory Chips Card PCB Circuit Board Disintegrator
Industrial Double Shaft CD Memory Chips Card PCB Circuit Board Disintegrator
Model
SPD350

Item specifics

Crushable Materials
PCB/ circuit board/ SSD/Memory Chips, ID card, cre
Crushing steps
Two steps crushing
Security Grade DIN DI66399
E-6 / O-6 / F-5 /T-7
Screen Mesh
1mm² - 5.0mm²
Throughout PCB Chips Per Hour
200-300 Kg /Hr
Application
E Waste
Feature
with Air Aspiration System
Waste Bin Capacity
600L
Machine Size
7090(L) X4647(W) X 3888(H) mm
Power
42.6kw / 380V / 50Hz

Review

Description

Product Description

SPD350 Heavy Duty PCB Circuit Board Disintegrator,suitable for waste electronics’circuit board, PCB,Chip recycling and data destruction purpose,working capacity more than 80kg per hour,final particle by customized size for smallest under 0.5*0.5mm.

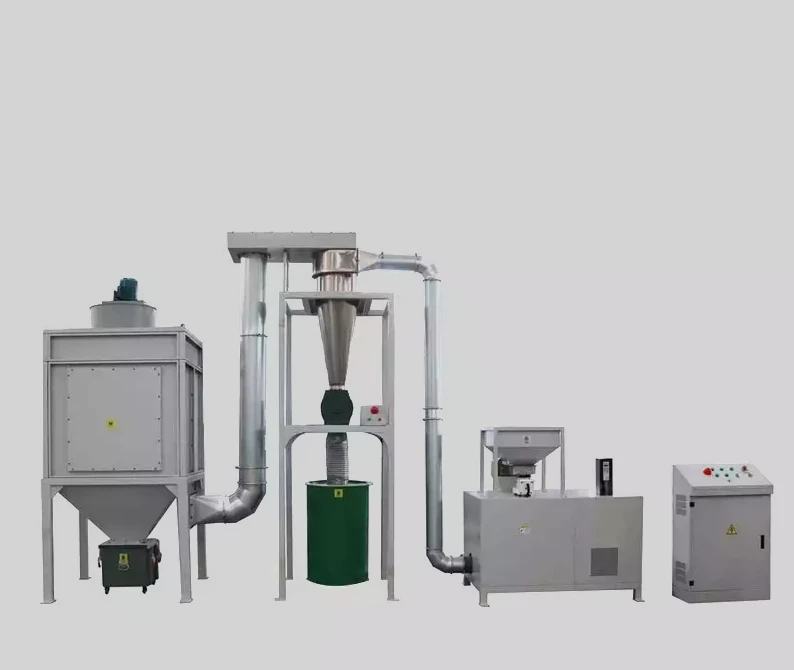

SPD350 contain weighing and automatically feeding system,high speed grinding system,dust collection system and smart control PLC system to protect the safety and reliable grinding operation
Product Video
Product Installation Video
We has own mould teams, production workshops and modern production lines, so that it can effectively controls quality of products and delivery time for shipping.
PCB Disintegrator
Circuit Board Crushing Machine
Chips disintegrator
credit card disintegrator
Specification

Crushable Materials

Memory Chips, PCB,circuit board, ID card, credit card, USB

Screen Mesh

0.12 mm² - 1.0mm²

Throughout per hour

>80-100 kg/hr

Power

13.95KW / 380V / 50HZ

Security Grade DIN DI66399

E-6 / O-6 / F-5 /T-7

Discharge drum

900mm height drum

Machine Size

5450(L) x1450(W) x 3239(H) mm

Application&Shredding Effect

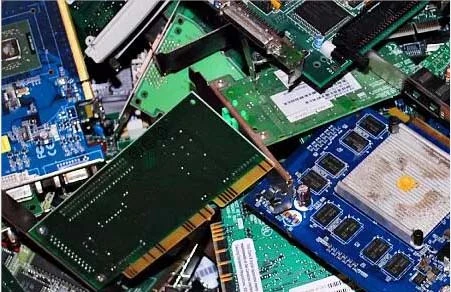

circuit board

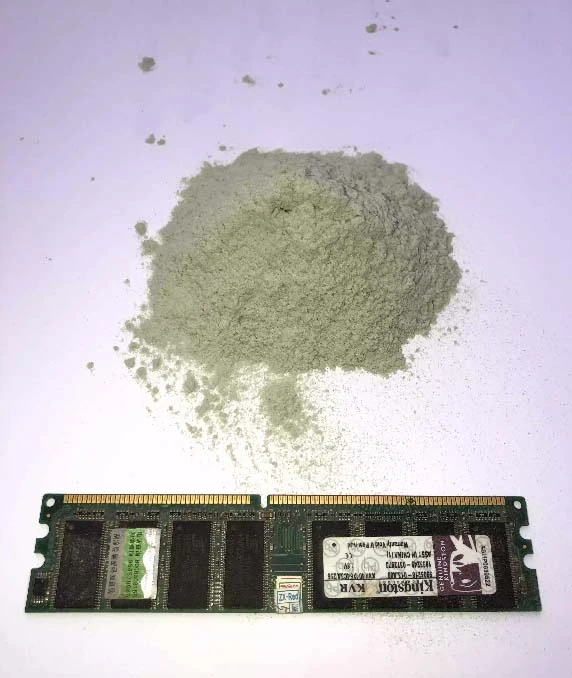

shredding effect
Certifications
certifications
Packing&Delivery
packing
FAQ
Q1:How long time for warranty time

A1All our shredder warranty time are 1 year.

Q2:What is the order process

A2Inquiry for the machine-->offer with technical proposal and layout-->purchasing order-->payment-->production-->delivery-->installation.


Q3:Does OEM accept?

A3Yes, We offer OEM service to our clients.

Q4:About certificates and patents

A4We have CE, INTERTEK, SAA, CB , ROHS, ISO CERTIFICATES and many patents
